SuperCAT4 Configuration Guide

Choose The Right SuperCAT4+ Model Code.

SuperCAT4 is not one single setup. Start by choosing the model code: standard utility detection, sonde and drain tracing, or cathodic-protection pipeline locating.

Fast buying guidePick the target utility first, then the locator model, then the T1 transmitter and accessories.

SuperCAT4+ Pipe Cable Locator - Must have for locating buried utility

SuperCAT4+General Cable Avoidance

SuperCAT4+SWater And Drain Pipes

SuperCAT4+CPSCathodic Protection Pipelines

1 RangeCable avoidance locator family for passive, active, sonde and CPS locating work

3 Locator BuildsStandard SuperCAT4+, SuperCAT4+S for sondes, and SuperCAT4+CPS for protected pipelines

4 Order OptionsT1-131, T1-640, T1-640/65 transmitters and a T1 bag can be selected with the locator

Core SafetyStrikeAlert, Dynamic Overload Protection, TruDepth and Real Sound support field decisions

Identify The Target

Cable avoidance, non-metallic drain route, protected pipeline, telecom cable or long power service.

Choose The Locator

Use SuperCAT4+ for broad utilities, SuperCAT4+S for sonde work, or SuperCAT4+CPS for cathodic-protection pipelines.

Add Signal Tools

Select the T1 transmitter frequency and accessories for direct connection, clamping, induction, sondes or Flexitrace.

Configuration Options

Which SuperCAT4+ Should I Choose?

Use this as the short decision table before requesting a quote. The model choice depends on the target utility and the locating method.

SuperCAT4+

General Cable Avoidance

Choose when: Choose when the team needs one straightforward locator for common construction, excavation and mixed utility checks.
Typical kit: Pair with a T1 transmitter when the target needs an applied signal through direct connection, clamp or induction.

Passive Power and Radio locating
Active T1 transmitter locating
Sonde and accessory compatible

SuperCAT4+S

Water And Drain Pipes

Choose when: Choose when water, drain, duct or non-metallic pipe tracing is the main job and sonde frequency coverage matters.
Typical kit: Pair with suitable sondes for point locating, or T1-512/640 style workflows and Flexitrace for continuous route tracing.

Widest sonde-frequency focus
Useful for deeper cast-iron routes
Flexitrace workflow with T1

SuperCAT4+CPS

Cathodic Protection Pipelines

Choose when: Choose for oil and gas or metal pipelines using rectified currents as part of a cathodic-protection system.
Typical kit: Use the CPS signal for suitable protected pipelines without applying an additional transmitter signal.

CPS signal detection
Protected metal pipeline tracing
Metric or imperial locator models

T1 Transmitter Choice

Choose Frequency By The Utility, Not By Habit.

Radiodetection notes that higher frequencies suit high-impedance or well-insulated utilities, while lower frequencies travel further on lower-resistance services.

T1-SUPERCAT4+131

High-Frequency T1

Best when the target is hard to couple to, such as well-insulated or high-impedance services.

T1-SUPERCAT4+640

Low-Frequency T1

Best for longer range tracing on lower-resistance services, including many power-line style routes.

T1-SUPERCAT4+640/65

Dual-Frequency T1

Best when crews need both lower-frequency reach and higher-frequency coupling flexibility.

T1-BAG

T1 Carry Bag

Keeps the transmitter kit together for field teams moving between daily excavation or survey jobs.

Sonde And Frequency Compatibility

Check The Combination Before You Choose.

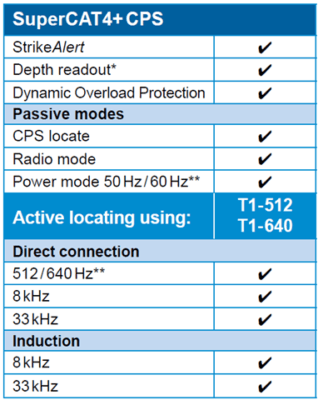

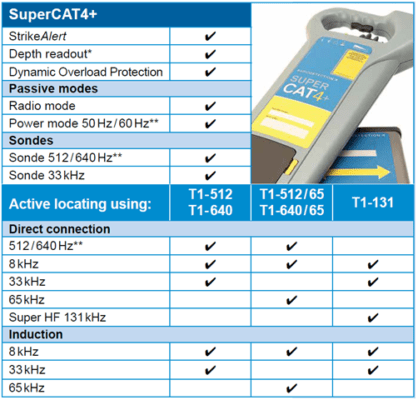

This is the key table from the SuperCAT4+ configuration image, rewritten so users can compare the model, sonde and active-locating options quickly.

Locator model	Passive modes	Sonde support	T1 transmitter	Direct connection	Induction
SuperCAT4+CPS	CPS locate, Radio mode, Power mode 50Hz / 60Hz	Nil	T1-512 / T1-640	512/640Hz, 8kHz, 33kHz	8kHz, 33kHz
SuperCAT4+S	Radio mode, Power mode 50Hz / 60Hz	512/640Hz, 8kHz, 33kHz	T1-512 / T1-640	33kHz	33kHz
SuperCAT4+	Radio mode, Power mode 50Hz / 60Hz	512/640Hz, 33kHz	T1-512 / T1-640, T1-512/65 / T1-640/65, T1-131	512/640Hz, 8kHz, 33kHz, 65kHz, Super HF 131kHz depending on transmitter	8kHz, 33kHz, 65kHz depending on transmitter

Applications

Three Common Ways To Configure SuperCAT4+.

Protected Pipelines

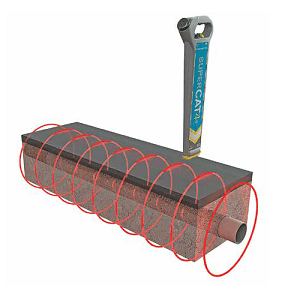

SuperCAT4+CPS can trace cathodic-protection signals on suitable metal pipelines without disconnecting rectifiers or applying a separate transmitter signal.

Water, Drain And Duct Routes

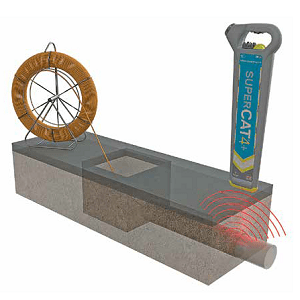

SuperCAT4+S supports a wide range of sondes, while a T1 transmitter can energize Flexitrace for continuous tracing of non-metallic pipes and conduits.

Power, Telecom And Mixed Utilities

SuperCAT4+ works with the T1 range for direct connection, clamping or induction. Higher frequencies help on insulated or high-impedance utilities.

Features And Methods

How SuperCAT4+ Is Used On Site.

Choose the locating method by access point and utility type, then rely on built-in field feedback to keep the operator moving.

Direct Connection

Most effective when a valve, meter, junction box or other access point is available.

Signal Clamping

Applies a T1 signal to a pipe or live cable up to 125mm / 5in without interrupting supply.

Induction

Convenient when direct connection or clamping is not possible.

Sonde / Flexitrace

Traces non-metallic pipes and conduits, with Flexitrace supporting continuous route tracing.

Dynamic Overload Protection

Filters high electrical interference around substations and high-voltage transmission cables so locating can continue in difficult conditions.

Real Sound

Audio is derived from detected signals, helping operators distinguish Power, Radio and Active responses from background noise.

Safety Built In

Works with

SuperCAT4+SuperCAT4+SSuperCAT4+CPS

View accessory

Product Specs

Decision Specs At A Glance

These are the practical specification points a buyer needs before choosing the SuperCAT4+ configuration.

Brand	Radiodetection
Category	Cable Avoidance Tool / Pipe & Cable Locator
Locator variants	SuperCAT4+, SuperCAT4+S, SuperCAT4+CPS
Transmitter options	T1-SUPERCAT4+131, T1-SUPERCAT4+640, T1-SUPERCAT4+640/65, T1-BAG
Core uses	Cable avoidance, sonde locating, cathodic-protection pipeline tracing and multi-utility detection
Frequency guidance	Higher frequencies help high-impedance or insulated utilities; lower frequencies travel further on lower-resistance services
Key features	Dynamic Overload Protection, StrikeAlert, TruDepth and Real Sound
Depth indication	TruDepth indicates depth when correctly positioned above the target cable, pipe or sonde
Safety alert	StrikeAlert warns of possible shallow cables and utility lines in Power and Active Line modes
Audio feedback	Real Sound helps distinguish Power, Radio and Active signals from background noise
Signal methods	Passive locating, sondes, direct connection, signal clamping and induction with T1 transmitters
CPS option	SuperCAT4+CPS detects cathodic-protection pipeline signals without an additional transmitter signal where applicable
Units	Metric or imperial locator model options
Support	Local model advice, training, calibration & repair in Malaysia
