MALÅ MIRA Compact

Compact 3D GPR mapping for utilities, sinkholes, voids and larger site investigation, with hand-pushed survey capability and a vehicle/tow-hitch path for faster coverage.

Best fit3D mapping, void detection, utility corridors and pavement surveys.

500 MHzCentre frequency for high-resolution shallow mapping

30 channelsScalable array coverage for dense 3D data

6.5 cmChannel spacing for tight target separation

32-bitOutput depth for detailed interpretation

What The User Sees

MALA Vision Turns GPR Data Into A 3D Mapping Result.

This is the deliverable workflow users care about: collected MIRA Compact data visualised in MALA Vision so subsurface targets can be reviewed in plan, depth and 3D context.

Inspect mapped utilities, voids and anomalies in a clear 3D environment.
Move from acquisition to interpretation with fewer manual processing steps.
Prepare clearer client communication for survey findings and risk areas.

Overview

One-Pass 3D GPR For Work That Needs Confidence.

MIRA Compact packages MALÅ's 3D Imaging Radar Array technology into a practical survey platform. It is designed for teams that need a fast, repeatable way to collect dense subsurface data without opening the ground.

The 500 MHz array, close channel spacing and HDR sampling help produce sharp, high-contrast data for shallow to medium-depth targets. That makes it a strong fit for sinkhole investigation, underground utility mapping, road assessment and complex site screening.

Large-Area Mapping

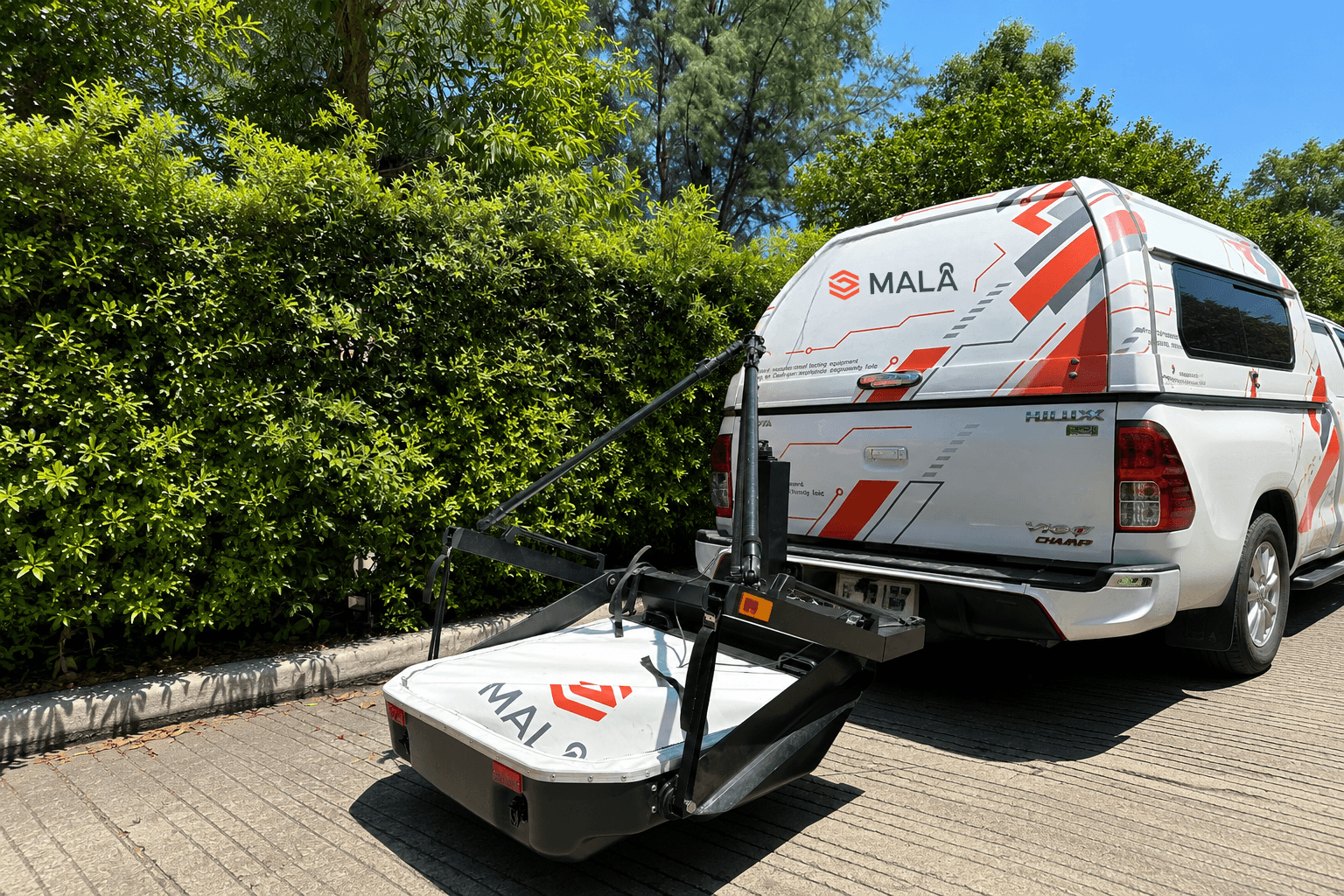

Vehicle And Tow-Hitch Configurations For Bigger Survey Areas.

When the job moves from a small site to roads, compounds, industrial yards or long corridors, MIRA Compact can be configured for vehicle-assisted surveying. RD-Palmer can help specify the tow-hitch accessories, mounting approach and training needed for your survey workflow.

Hand-pushed survey modeVehicle mounting pathTow-hitch accessoriesLarge-area productivity

Applications

Built For Subsurface Decisions, Not Just Data Collection.

Use MIRA Compact where a single-line GPR pass is not enough and the survey needs 3D context.

Sinkholes & voids

Identify cavities, loose ground and subsurface risks before work begins.

Utility corridors

Map metallic and non-metallic services in complex urban environments.

Roads & pavements

Survey pavement layers and sub-base condition over larger areas.

Brownfield sites

Locate underground tanks, old structures and buried anomalies.

Archaeology

Image buried features without opening trial trenches.

UXO screening

Collect repeatable 3D data for anomaly detection and investigation.

System Workflow

Acquire, Interpret And Scale The Survey.

The system is strongest when hardware, software and deployment accessories are planned together.

Field survey

Acquire

MIRA Controller supports real-time acquisition, positioning and survey QA while the array is pushed or vehicle-mounted.

MALA Vision

Interpret

MALA Vision turns collected profiles into 3D views that make utilities, voids and anomalies easier to inspect.

Tow-hitch ready

Scale up

For larger areas, configure vehicle mounting and tow-hitch accessories so the system can cover more ground efficiently.

Specifications

Technical Details

Final configuration depends on the survey area, target depth, positioning method and mounting setup.

Brand	MALÅ (Guideline Geo)
Category	Ground Penetrating Radar
System type	Compact 3D imaging radar array
Centre frequency	500 MHz
Data channels	10 standard, up to 30 simultaneous
Channel spacing	6.5 cm
Output	32-bit
Core technology	MALÅ HDR real-time sampling
Deployment	Hand-pushed or vehicle/tow-hitch configuration
Software	MIRA Controller + MALA Vision Desktop
Availability	Enquire for current lead time
Support	Local training, calibration & repair in Malaysia
