MALÅ Easy Locator HDR WideRange

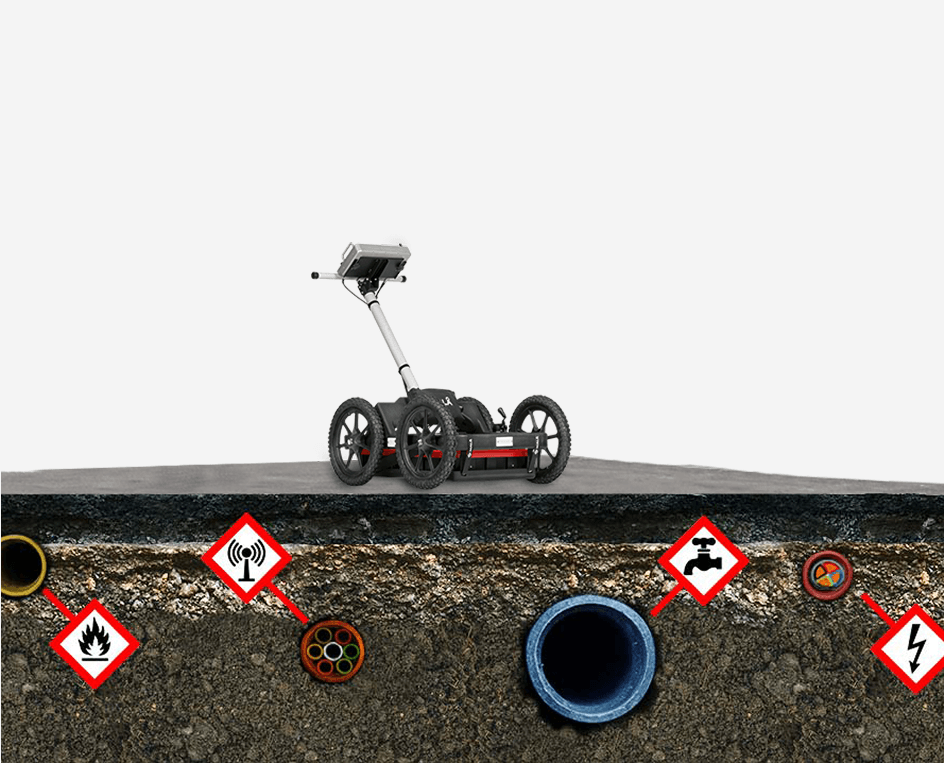

The widest GPR antenna bandwidth available for utility detection. Ultra-fast simultaneous acquisition captures high-resolution shallow data and deep-penetrating data at the same time, all in one solution, with a single antenna and a single pass.
Shallow Detail And Deep Reach, In One Pass.
Conventional GPR makes you choose: a high frequency that resolves shallow detail, or a low frequency that reaches deep. WideRange's 80–950 MHz antenna does both at once. On the high-resolution display a movable divider splits the screen. Drag it to reveal more shallow detail or more depth.
One ultra-wide antenna
An 80–950 MHz effective bandwidth means a single antenna spans the high frequencies that resolve shallow detail and the low frequencies that reach deep.
Shallow + deep at once
Ultra-fast simultaneous acquisition collects high-resolution shallow data and deep-penetrating data together, no second survey, no antenna swap.
Move the divider to focus
A movable horizontal divider on the display lets you reveal more shallow detail or more depth on the fly, balancing the view to the target.
HDR real-time sampling stacks up to 1000× per data point, so WideRange is faster, resolves finer and penetrates deeper than competitive products, all from the same survey.
Ground-Breaking Bandwidth, Familiar Simplicity.
The MALÅ Easy Locator HDR WideRange takes surveys and deeper investigations to a new level, with the widest GPR antenna bandwidth on the market. Yet MALÅ's engineers kept the user-friendly interface intact, so the benefits of the new antenna are easy to access in the field.
The high-resolution display presents WideRange data with a movable horizontal divider at the centre of the screen. Move it up or down to view more of the high-resolution shallow data or the deep-penetrating data, a single antenna, simultaneously serving both ends of the job.
A Tougher Cart And Precise Positioning.
The re-engineered EL Pro Cart and Rough Terrain Cart carry the WideRange antenna across the roughest ground, while built-in DGPS (and optional RTK GPS) pin every located object to a precise position for clean mapping and reporting.
Re-engineered Pro Cart
Improved stability and folding, a fully encapsulated wheel-axis encoder, and a redesigned battery compartment for smoother handling and more runtime.
Precise positioning
Built-in DGPS (SBAS) out of the box, with optional Emlid RTK GPS for sub-centimetre accuracy on every located object.
Rough Terrain Cart
Two RTC sizes available to take the WideRange antenna across the toughest, most uneven ground.
One System For Shallow And Deep Investigations.
WideRange suits jobs that span depths in a single survey, from utility mark-out to bedrock and landfill studies.
Utility locating & mapping
Detect and map metallic and non-metallic services across mixed depths in one survey.
Bedrock mapping
Reach deeper interfaces to profile bedrock and overburden in a single pass.
Road investigation
Survey pavement layers and sub-base condition with both resolution and depth.
UST detection
Locate underground storage tanks and buried structures on brownfield sites.
Sinkholes & voids
Find cavities, washouts and loose ground before they undermine a road or slab.
Landfill & heritage
Profile landfill studies and image buried cultural-heritage features without excavation.
Acquire, Process And Map.
From the high-resolution display to a finished deliverable, with MALÅ Vision and optional Object Mapper 2.0.
Acquire
Collect WideRange data on the high-resolution display, with the movable divider balancing shallow and deep in real time.
Process
Import directly into MALÅ Vision for 2D/3D visualisation and reporting, described as the easiest-to-use software in the industry.
Map
Optionally pair with Object Mapper 2.0, a field-proven tool for utility-detection professionals, for fast mark-out and deliverables.
Technical Details
Final configuration depends on your survey depths, positioning method and chosen cart setup.
| Brand | MALÅ (Guideline Geo) |
| Category | Ground Penetrating Radar |
| System type | Wide-band HDR GPR for utility detection & investigation |
| Effective bandwidth | 80–950 MHz (widest available on the market) |
| Core technology | MALÅ HDR real-time sampling, stacking up to 1000× |
| Acquisition | Simultaneous shallow high-resolution + deep data, single pass |
| Display | High-resolution screen with movable shallow/deep divider |
| Positioning | Built-in DGPS (SBAS); optional Emlid RTK GPS |
| Software | MALÅ Controller + MALÅ Vision; optional Object Mapper 2.0 |
| Platform | Re-engineered EL Pro Cart / Rough Terrain Cart (two sizes) |
| Availability | Enquire for current lead time |
| Support | Local training, calibration & repair in Malaysia |
