MALÅ Easy Locator Lite

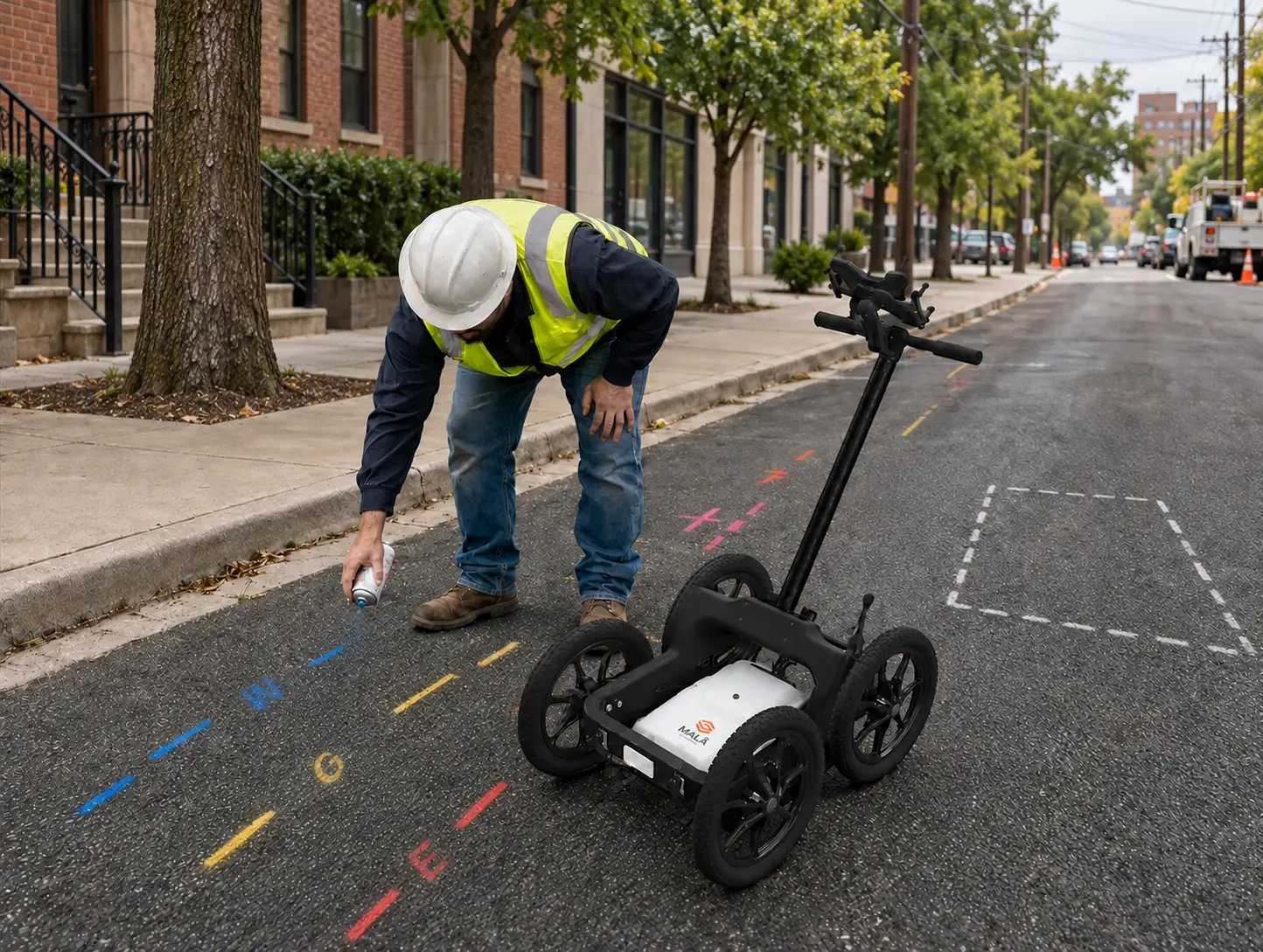

An easy-to-use, more affordable GPR for fast utility avoidance and mark-out. It comes ready to work, with key settings preset for utility locating and real-time MALÅ AI support, so new and experienced operators can focus on finding what is underground.

MALA Easy Locator Lite - Easy-to-Use, Affordable Utility Locating GPR

Best fitUtility avoidance ahead of excavation and straightforward mark-out.

Ready to workKey GPR settings come preset for utility locating

Real-time AIMALÅ AI highlights potential targets as you scan

450 MHzThe same HDR antenna frequency as the Easy Locator Core

> 8 hOperating time on dual hot-swappable 12 V batteries

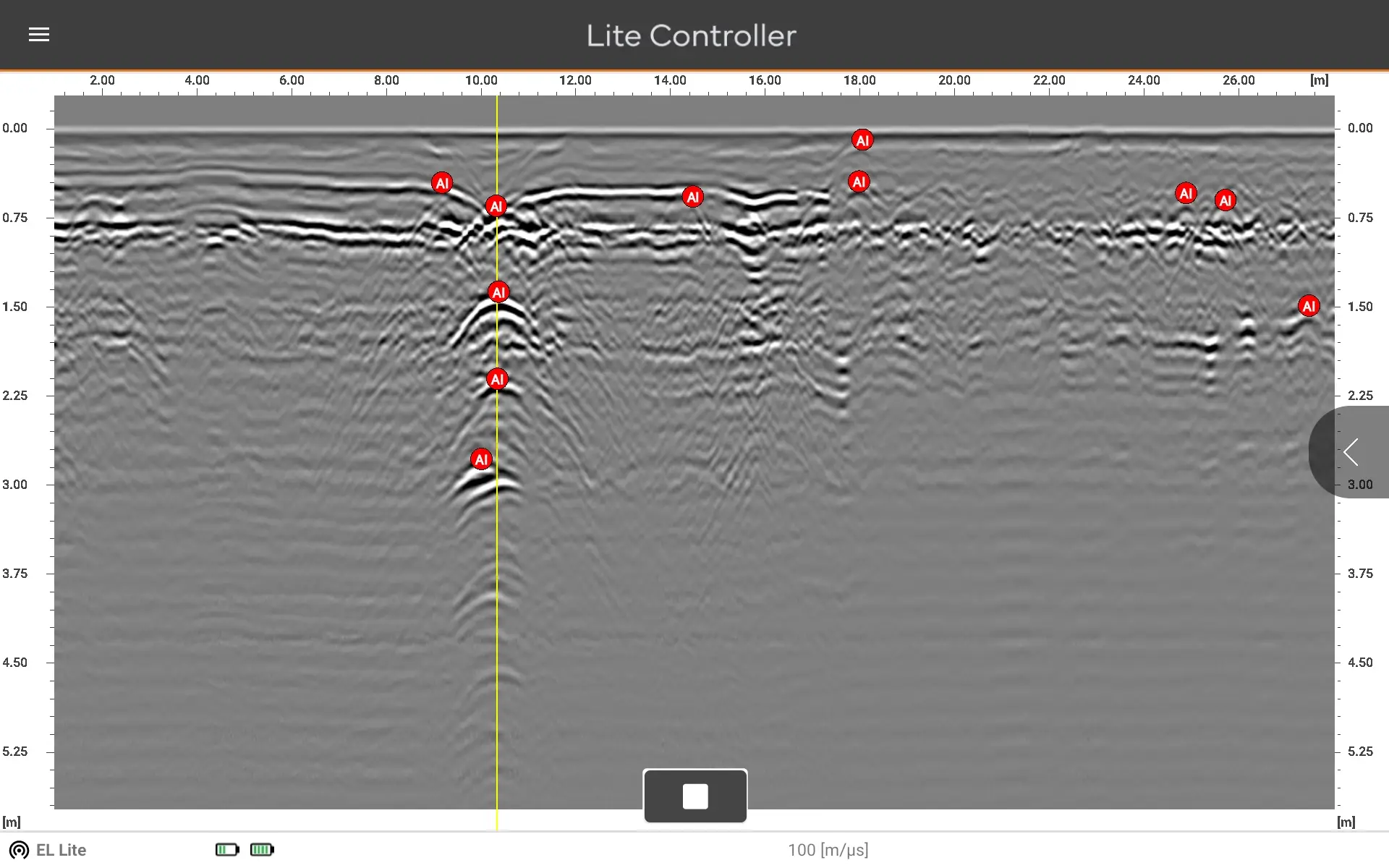

Lite Controller showing a live radargram with MALÅ AI target markers

What The Operator Sees

Lite Controller: Live Results With MALÅ AI Support.

Purpose-built for efficient utility mark-out, Lite Controller gives operators a focused workflow from the moment they start scanning. Its clear, task-oriented interface shows the radar response in real time.

MALÅ AI highlights potential targets as data is collected.
Hyperbola fitting and set-depth-to-known-target tools are built in.
Runs on a rugged Samsung Galaxy Tab Active Pro 5G or Getac ZX-10 tablet.

Overview

Professional GPR Without The Complexity.

MALÅ Easy Locator Lite is a cost-effective, easy-to-use ground penetrating radar for fast, confident utility locating and mark-out. Its focused workflow gives operators the information they need in real time, without the complexity of a traditional data-collection system.

Key GPR settings are set for utility locating, so operators can focus on detecting and marking buried utilities instead of survey setup, positioning, stored survey data or post-processing.

“Utility locators should be able to focus on finding what is underground, not on operating a complex survey system.”Andreas Viberg, Product Manager, MALÅ

How It Works

Arrive, Scan, Mark, Move On.

A clear, repeatable process that keeps new and experienced operators focused on locating buried utilities.

Step 1

Arrive

The system comes ready to work. There is no survey project, positioning or settings to set up first.

Step 2

Scan

Push the Lite across the area and review the live radar response on screen, with MALÅ AI support.

Step 3

Mark

Mark potential targets on the ground. Final interpretation and marking decisions stay with the operator.

Step 4

Move on

Continue to the next section of the site. Nothing to save, upload or post-process afterwards.

Rugged Mobility As Standard

Built On The MALÅ Rough Terrain Cart Mini.

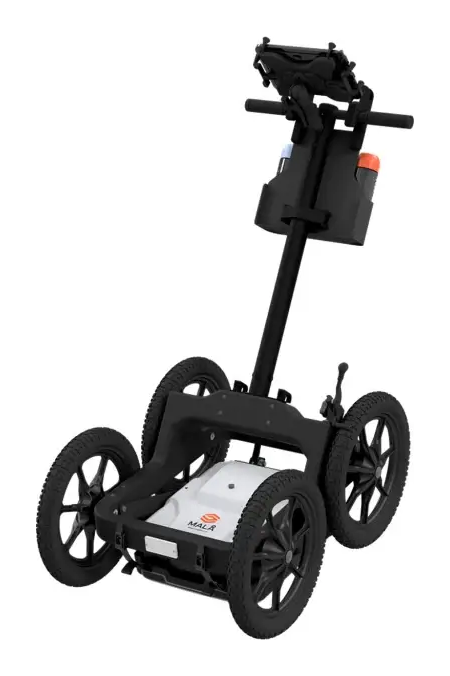

Easy Locator Lite is designed exclusively for the MALÅ Rough Terrain Cart Mini, which is included as standard. It gives crews a stable, durable platform that is quick to set up, easy to transport and steady across uneven ground.

RTC Mini includedQuick to set upEasy to transportStable on rough terrain

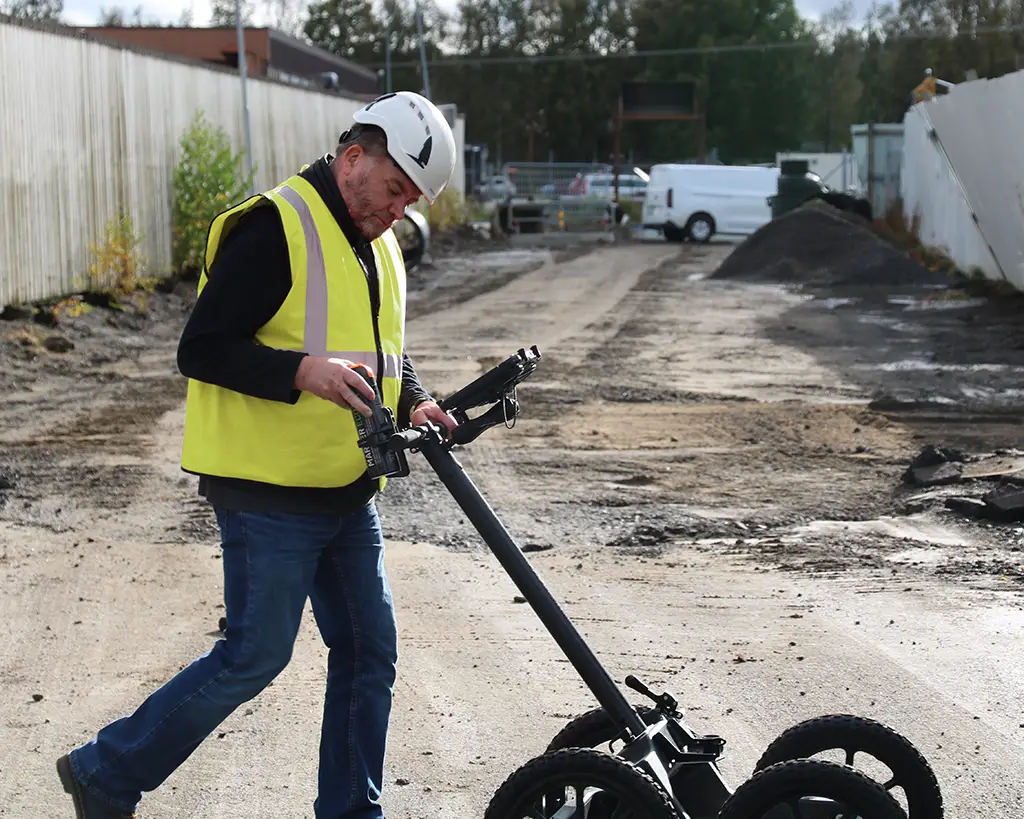

Operator pushing the Easy Locator Lite across rough, uneven ground

Applications

Made For Utility Avoidance And Mark-Out.

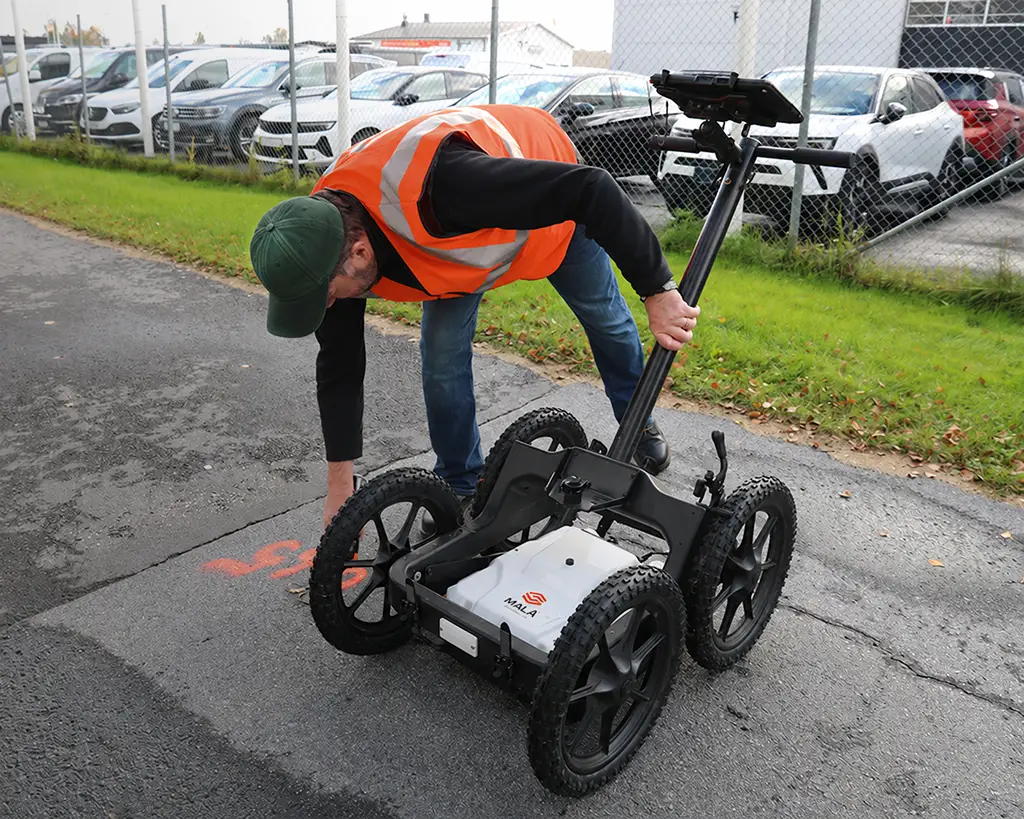

Avoidance

Rapid utility avoidance ahead of excavation. Optimised settings help crews scan the area, interpret results and identify potential buried utilities without setting up a full survey project.

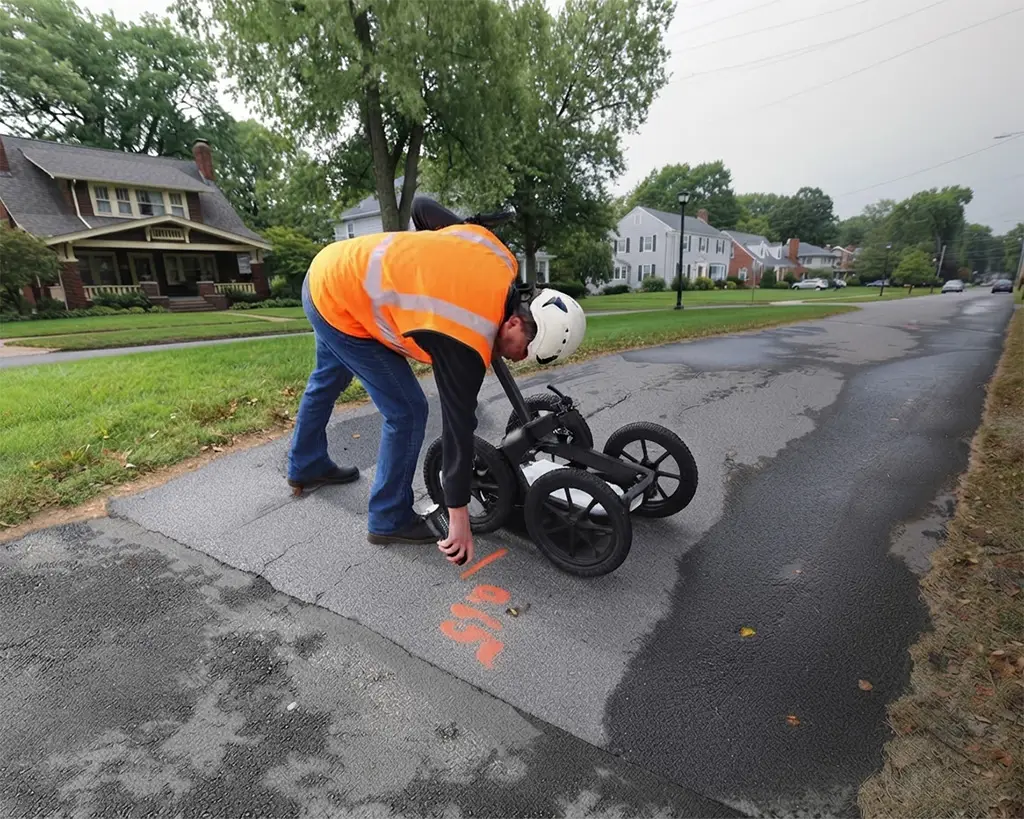

Mark-out

Straightforward utility mark-out. Operators view results in real time and use MALÅ AI support to help identify potential targets, then locate and mark them efficiently in the field.

Lite Or Core?

Choose The Easy Locator That Fits The Job.

Both are built on the same MALÅ measurement foundation. The Lite is focused on fast mark-out before you dig. The Core adds saved survey data, precise positioning and 3D project work for complete utility surveys.

Both models include

450 MHz antenna
MALÅ AI assistance
MALÅ HDR real-time sampling
Set depth to known targets
Automatic and manual gain
Hyperbola fitting
Metric and imperial units
Selectable radargram colour palettes

	New · Fast mark-outEasy Locator Lite	Full survey capabilityEasy Locator Core
Best for	Fast utility avoidance and on-site mark-out	Complete utility surveys, mapping and project work
Ideal user	New operators and excavation crews	Survey teams and experienced GPR users
Setup	Preset for utility locating: switch on and scan	Fully configurable survey settings and advanced triggering
Software	Lite Controller	MALÅ Controller App + MALÅ Vision
Survey data	Live view for marking out on site	Save, export and report survey data
Positioning	Not needed for mark-out	Integrates RTK GNSS, DGNSS, total station and more
Projects	2D mark-out	3D and baseline projects, map view and annotations

Specifications

Technical Details

From the MALÅ Easy Locator Lite technical specification. Download the full sheet below.

Brand	MALÅ (Guideline Geo)
Acquisition platform	Lite Controller
Recommended tablets	Samsung Galaxy Tab Active Pro 5G, Getac ZX-10
Artificial intelligence	Real-time MALÅ AI
Core technology	MALÅ HDR real-time sampling
Antenna centre frequency	450 MHz
Signal-to-noise ratio	> 102 dB
Bandwidth	> 121 % fractional, at -10 dB
Data output	32 bit
Acquisition mode	Encoder wheel
Power supply	Dual interchangeable 12 V Li-ion batteries, hot-swappable
Operating time	> 8 hours
Antenna dimensions	21 × 44 × 37 cm
Dimensions in operation	105 × 61 × 86 cm (in RTC Mini)
Transport dimensions	42 × 88 × 62 cm
Antenna weight	5.5 kg incl. batteries
Weight in operation	23.7 kg incl. RTC Mini and batteries, excl. tablet
Rough-terrain capability	MALÅ Rough Terrain Cart Mini, standard
Environmental rating	IP65
Support	Local training, calibration & repair in Malaysia
