This Current Direction clamp is used to apply a CD or low frequency signal from a transmitter to a cable or pipe. The CD signal is useful for identifying individual utilities in congested areas. This is the only transmitter clamp which can be used with frequencies below 1kHz.
See illustration below
| Weight | 1 kg |
|---|---|
| Dimensions | 10 × 10 × 8 cm |
| Clamp | 10/GENNY-CLAMP-50, 10/GENNY-CLAMP-100, 10/GENNY-CLAMP-130, 10/GENNY-CLAMP-215 |
Application
The CD clamp plugged into the accessory socket of the transmitter enables CD signals to be applied to individual cables.
Current Direction recognition is a feature that helps to positively identify a line at points distant from the application of the signal. It is highly desirable, if not essential, for positive identification of long distance lines and congested areas.

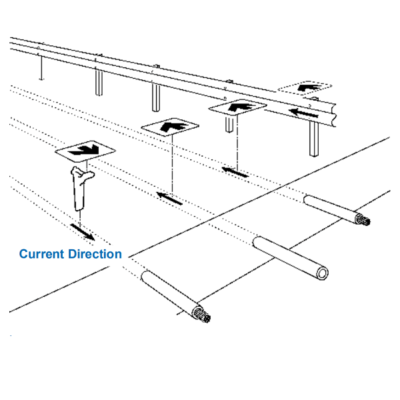

The CD feature on the RD8100PDL and PTL locators indicate the direction of the current flow on a line. Identity of the target line is established if the locator display indicates that the current is flowing forward and away from the point of application of the transmitter signal. These lines can be traced and positively identified through congested areas or when running parallel to other lines.
A signal that has coupled onto adjacent lines finds a return path to the point of the original signal application. This is indicated by the locator arrow pointing back towards the transmitter. This is in contrast to the forward pointing arrow indicating the target line.
The CD transmitter signal should be directly coupled to the target line with a remote ground connection. Most CD signals are low frequency, making them unsuitable for connection with a normal clamp or induction. These can however be applied with a transmitter CD clamp.
Using Current Direction (CD) to aid line identification
The RD8100 PDL & PTL locators, and Tx-10 and Tx-10B transmitters feature several CD frequencies to help you determine the direction of current through a target line.
NOTE: The transmitter and locator must both have the same CD frequency or frequencies installed to enable the feature to be used. If you have more than one CD frequency installed ensure that the transmitter and locator are both set to the same CD frequency.
