3D GPR mapping in a compact format

MALÅ 3D Imaging Radar Array (MIRA) is a high-speed, one-pass 3D GPR system and the most effective solution for large-area GPR mapping.

MIRA Compact is built on our world-renowned MALÅ HDR (High Dynamic Range) real-time sampling technology providing ultra-fast measurements and razor sharp data. The solution seamlessly integrates acquisition, processing, QA/QC, positioning and interpretation of ground penetrating radar data.

The MALA MIRA Compact is designed for 3D mapping application which includes

• Utility Mapping
• Archaeology
• Underground Storage Tank (UST)
• General Road Assessment
• Sinkhole and many more.

Multiple Channels

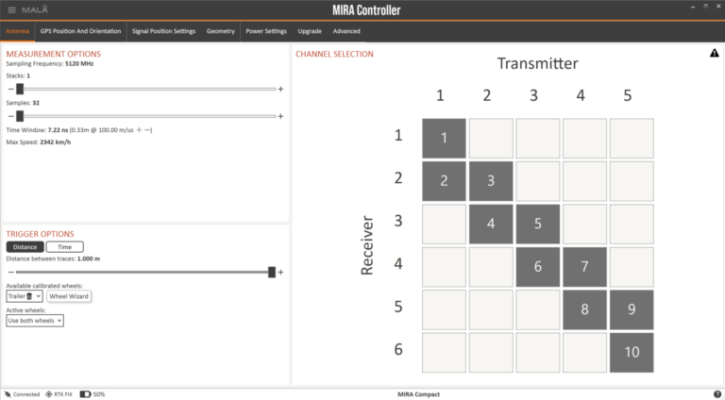

The MIRA Compact GPR array uses a 500 MHz centre frequency. The system is designed to be Compact for ease of application. Thought Compact the system is normally set up to collect 10 parallel data channels, however the system is capable of collecting up to 30 data channels simultaneously since it allows data collection from any transmitter-receiver combination in the whole array.

MIRA Compact delivers 32-bit output, producing exceptional data quality, even at high-speed surveys. The 6.5 cm channel spacing allows for the collection of precise, high-resolution data.

MALÅ HDR Technology

The MALÅ MIRA Compact has been designed to take full advantage of the MALÅ HDR technology, giving you the best possible GPR data quality, resolution and bandwidth.

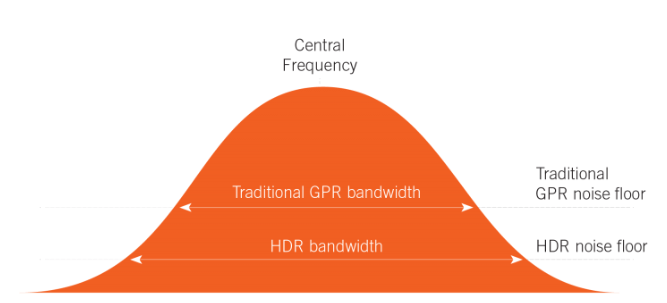

The MALÅ HDR, real-time sampling technology produces data with significantly lower noise levels, compared to traditional GPR systems. A lower noise floor gives a wider bandwidth when compared to conventional time-interleaved systems. This removes more of the background interference, giving sharper data with higher contrast, and the ability to see deeper than non-HDR systems.

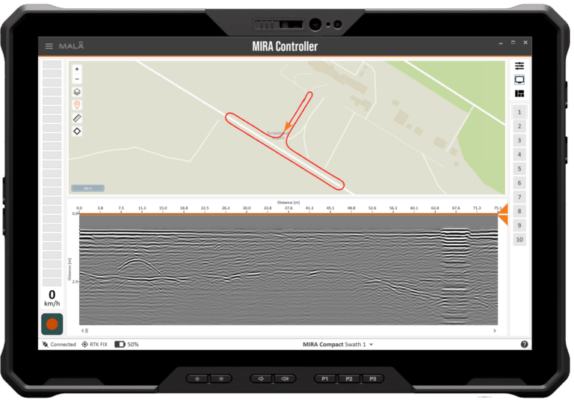

MIRA Controller

With the new MIRA Controller acquisition software, you will experience a modern and easy-to-use interface with integrated navigation aids helping you to maximize the quality of your measurements. MIRA Controller tracks the performance and data collection in detail helping you to maintain the correct speed and course.
