RD510 Plastic Pipe and Water Leak Locator

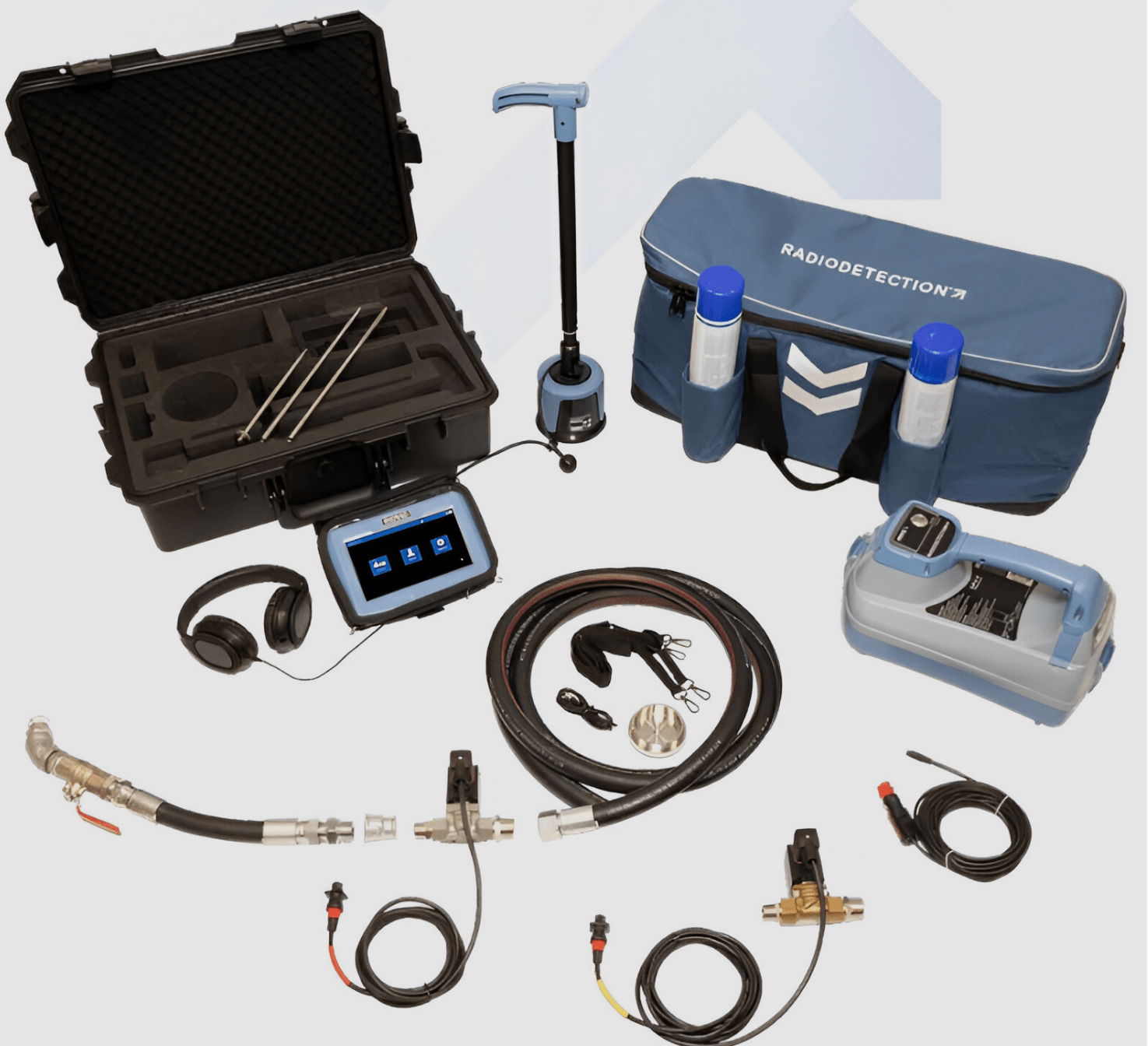

RD510 comes with Controller with soft bag cover, accoustic sensor, telescopic pole, soft ground spikes, hard ground plate, headset, USB cable, memory card and transit case.
- Optional: Pulse Water Transmitter (PWT) which provides traceable pulse to the target pipe for locating. Available options for PWT are Standard 4bar or High Pressure 10bar.
-
Buying Guide:
For plastic pipe locating, a PWT is mandatory as it helps to inject traceable pulse for locating with RD510. For water leak detection, only RD510 kit is required.
Product successfully added to the Quote List

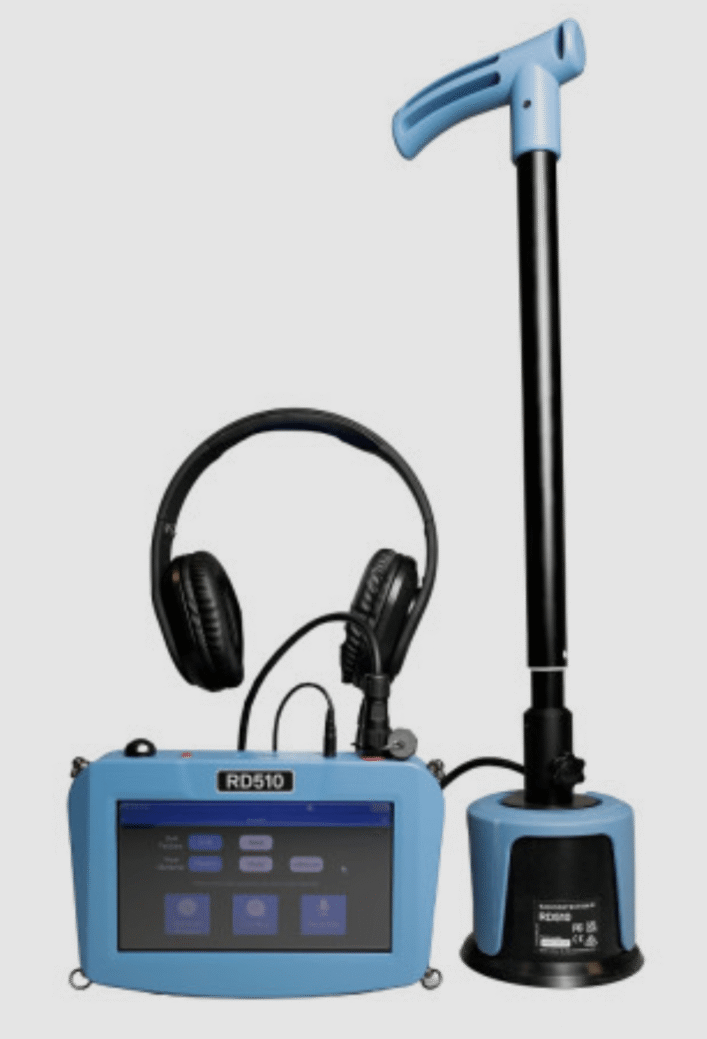

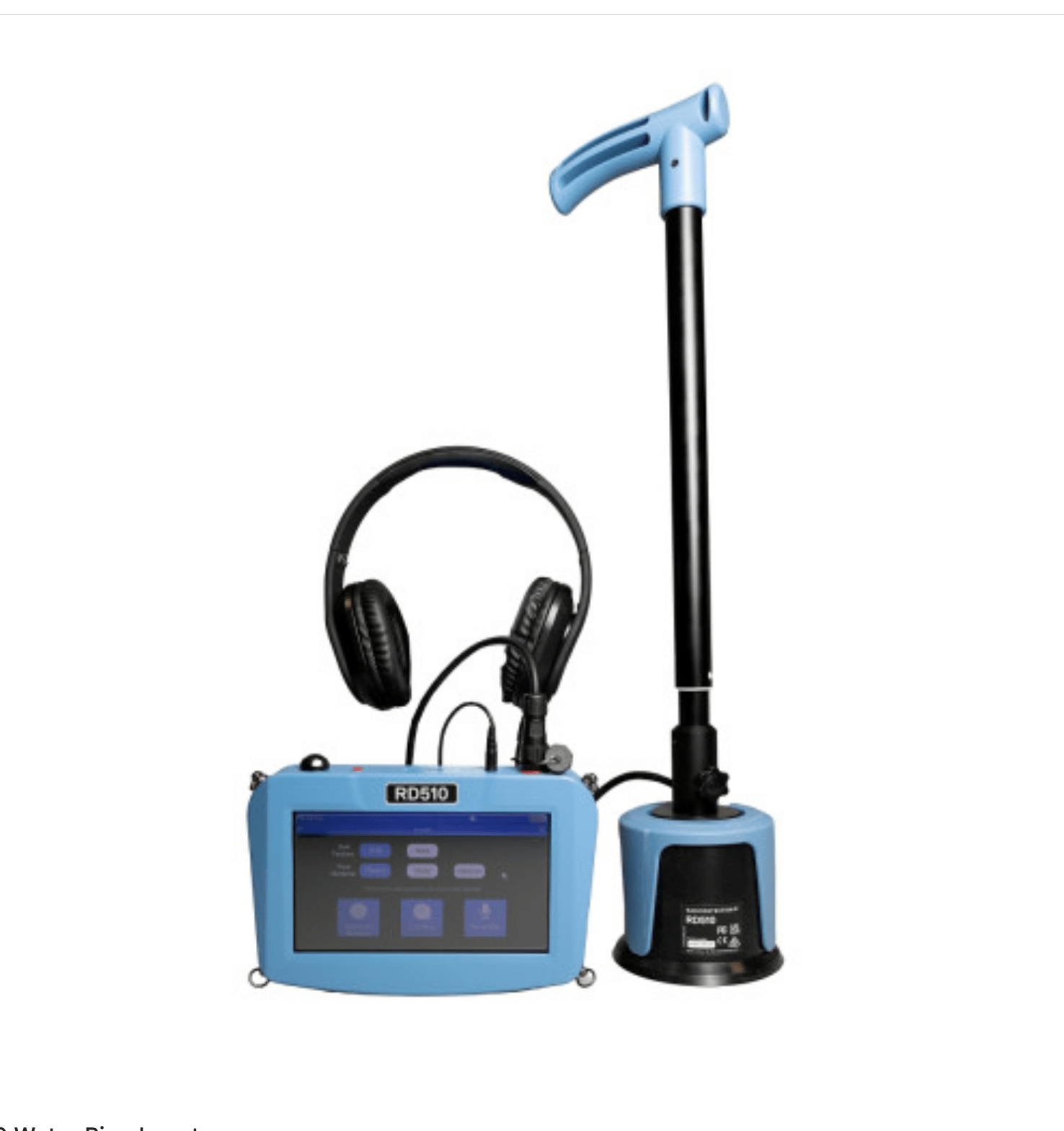

RD510 Water Pipe Locator & Leak Detector
Advanced Water Leak Detection Solution
Water leakage remains a critical global issue, leading to extensive water loss, rising operational costs, and challenges in sustainable water management.
The RD510 is a versatile, all-in-one device designed to efficiently detect and locate subsurface leaks in water pipes.
While plastic pipes are a durable and flexible alternative to traditional materials, their non-metallic composition makes underground detection more difficult—complicating maintenance, repair, and replacement tasks.
The RD510 Water Pipe Locator & Leak Detector addresses these challenges, enabling precise leak detection at depths of up to 16 ft / 5 m*. Ideal for maintenance crews, this solution enhances efficiency and accuracy in water infrastructure management.
*Detection depth may vary based on soil type and pipe material.
Features
User-Friendly Control
Easy-to-use, hand-held control unit with 7” color touch screen.
High Sensitivity Microphone
Ground microphone with a telescopic pole for precise detection.
Comfortable Headset
Equipped with a standard audio jack for seamless audio clarity.
Versatile Metal Spike
Extends usability on soft ground conditions.
Band pass filter to minimize background noise interference.
Provides a traceable pulse to the target pipe.
Pulsed Water Valves to suit most environments (4 or 10 bar).
Download
RD510 Plastic Pipe Locator brochure
EC Declaration Certificate – RD510 Plastic Pipe Locator
EC Declaration Certificate – RD510 PWT Pulse Water Transmitter
