Liners for pipe rehabilitation and repair

Trelleborg MultiFlex 3D First choice for small diameter underground and down pipes with diameter changes. The highly flexible material ensures easy installation and the best possible lining with multiple bends up to 90° and up to two dimensional changes.

More info DIBt certification Z-42. 3-468 DN 30 – DN 200 (NPS 1.

18” – 8”) Under size: 9 % ≥ 3. 0 mm final wall thickness All known curing methods Trelleborg MultiFlex 1D First choice for small diameter underground and down pipes.

The highly flexible material ensures easy installation and the best possible lining with multiple bends up to 90°. More info DIBt certification Z-42.

3-468 DN 30 – DN 200 (NPS 1. 18” – 8”) Under size: 18 % ≥ 3.

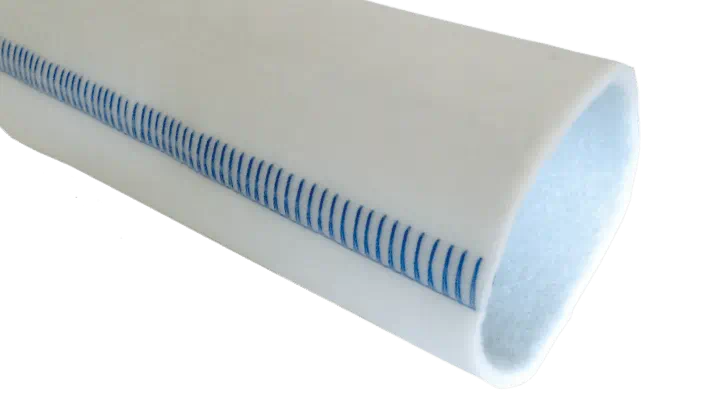

0 mm final wall thickness All known curing method Trelleborg ProLiner Ideal for professionally executed standard installations for house connections and in building services. More info DIBt certification Z-42.

3-468 DN 100 – DN 600 (NPS 4” – 24”) ≥ 3. 0 – 6.

0 mm final wall thickness High chemical resistance, up to 100 °C / 212 °F All known curing methods Trelleborg UltraFlex 3D Perfect for lateral pipes, two dimension changes, excellent final wall thickness, even in expanded areas, bends up to 90°. More info DIBt certification Z-42.

3-468 DN 75 – DN 200 (NPS 3” – 8”) ≥ 3. 5 – 5.

0 mm final wall thickness All known curing methods Trelleborg UltraFlex 1D Perfect for lateral pipes with up to one dimension change and several bends of up to 90°. More info DN 50 – DN 200 (NPS 2” – 8”) ≥ 3.

5 – 5. 0 mm final wall
