P350 Elevators
Manual and Powered Elevators for Pearpoint P350 flexitrax providing the flexibility to meet your inspection needs.
Buying Guide: You can configure your full system here and request for a quotation or contact us for assistance
Product successfully added to the Quote List
The P350 / P550 elevators helps to lift and centralize the inspection camera in the pipe. Designed to work with Pearpoint flexitrax range of CCTV and is available for lifting either manually or powered from the crawler.

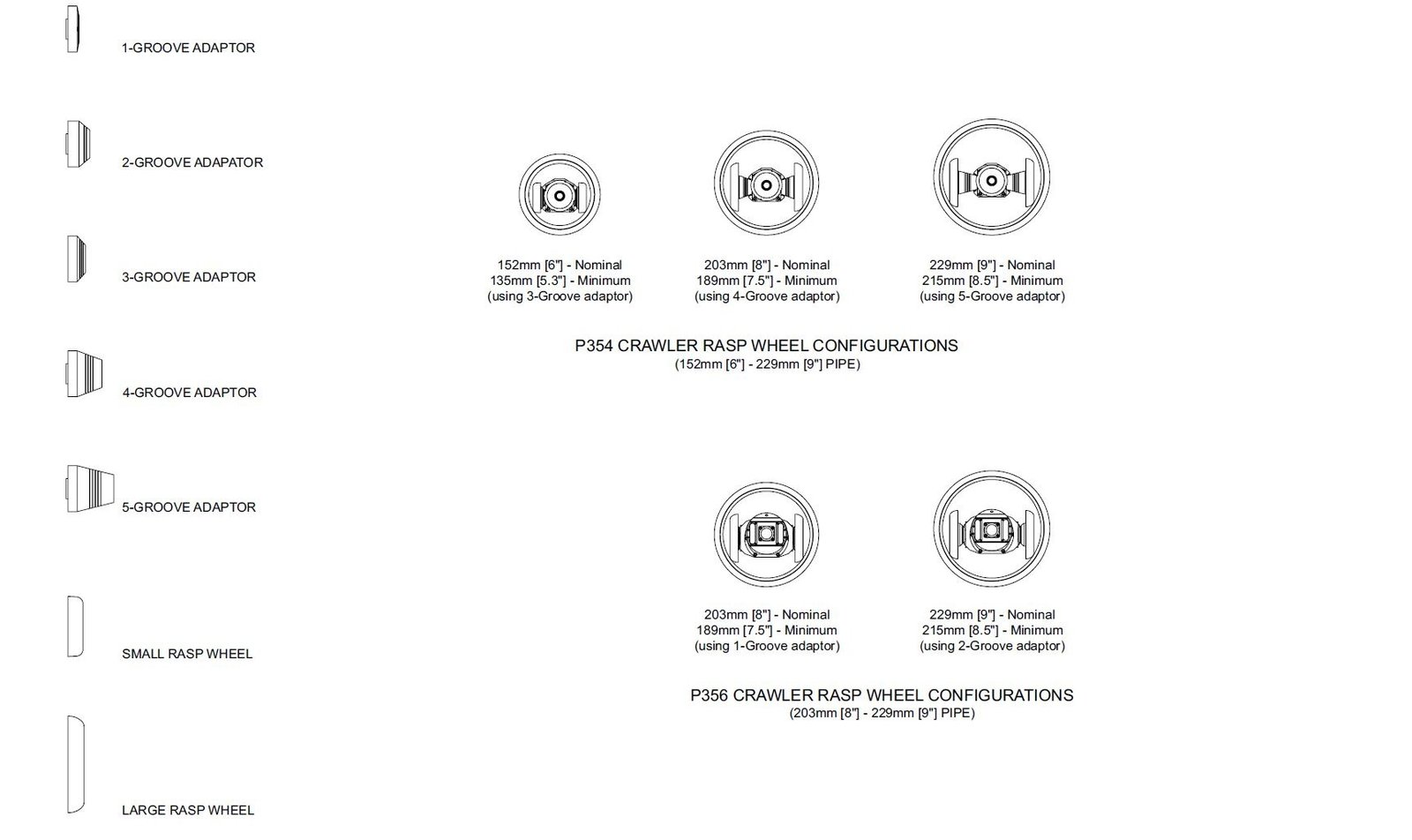

Apart from using elevator, additional wheels and sizes of the wheels can be used to elevate and centralize the camera too.
See elevator options available and Elevator Configuration Reference tab below for more information.
Elevator Options
| Elevators | Fixed Elevator | Large Manual Elevator | Powered Elevator
| Powered elevator and compact cradle | Powered elevator and cradle |
Centred pipe inspection diameter – P354 crawler | 305mm – 12” | – | – | – | – |
Centred pipe inspection diameter – P356 crawler | 380mm – 15” | 305mm-610mm 12-24” | 305mm-900mm 12-36” | 775mm-1360mm 30-54” | 900mm-1500mm 30-60” |
| Construction | Stainless steel/Anodized Aluminum | Stainless steel/Anodized Aluminum | Stainless steel/Anodized Aluminum | Stainless steel/Anodized Aluminum | Stainless steel/Anodized Aluminum |
Weight | 0.4kg/0.9Ibs | 4.5kg/9.9Ibs | 5.8kg/12.8Ibs | 20.8kg/46Ibs | 27.8kg/61Ibs |
| Dimensions @ maximum elevation | 114 x 48 x 67 mm 2.5 x 1.9 x 2.9″ | 230 x 90 x 420mm 9 x 3.6 x 16.5″ | 380 x 110 x 420mm 15 x 4.3 x 16.5″ | 690 x 419 x 617mm 27.2 x 16.5 x 24.3″ | 739 x 534 x 712mm 29.1 x 21 x 28″ |
| Elevator Options | 10/P350-ELV-F-MK2, 10/P350-ELV-LAM, 10/P350-ELV-P, 10/P356-CRADLE, 10/P356-CRADLE-COMP, 10/P350-ELV-P-SKID |
|---|

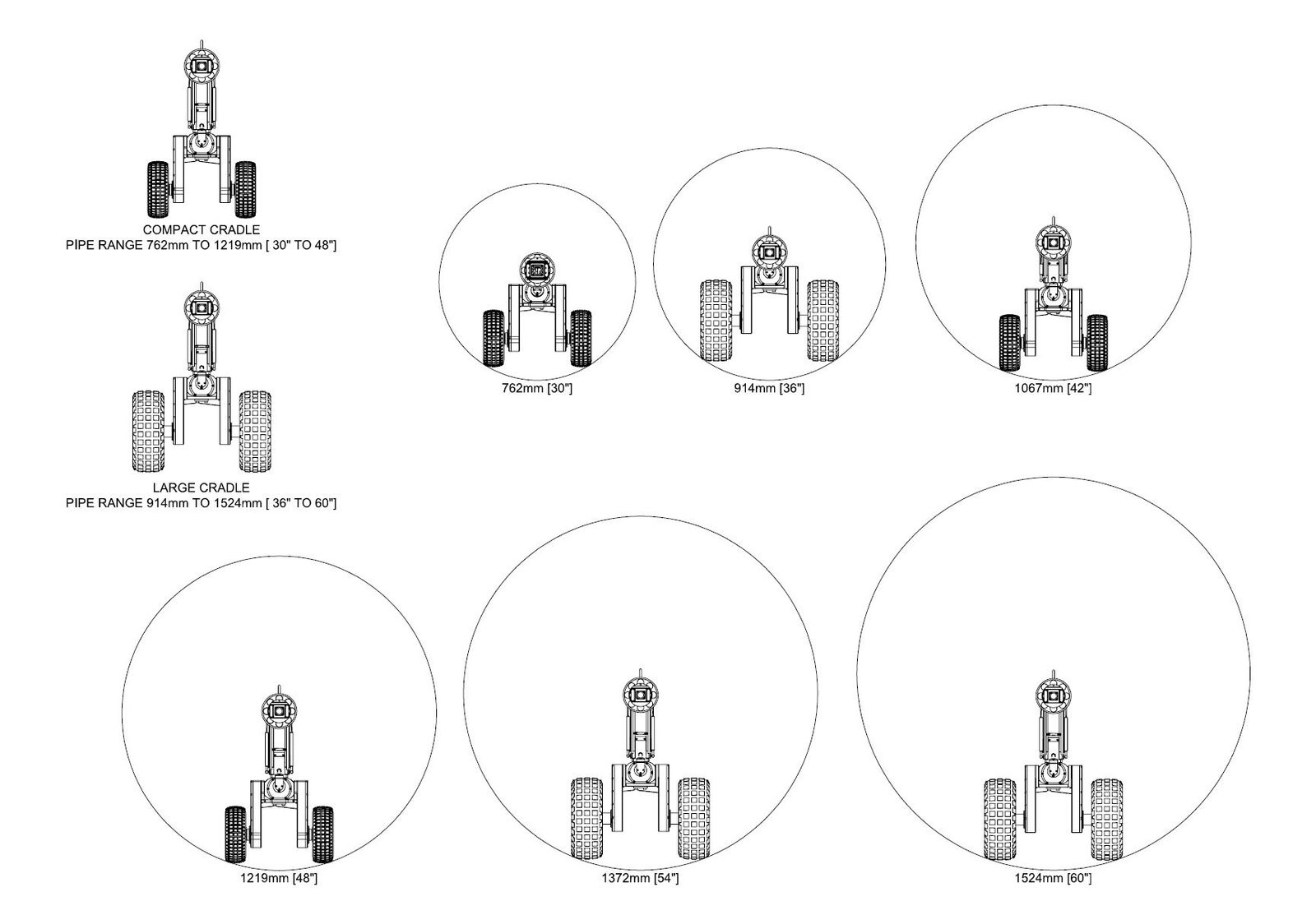

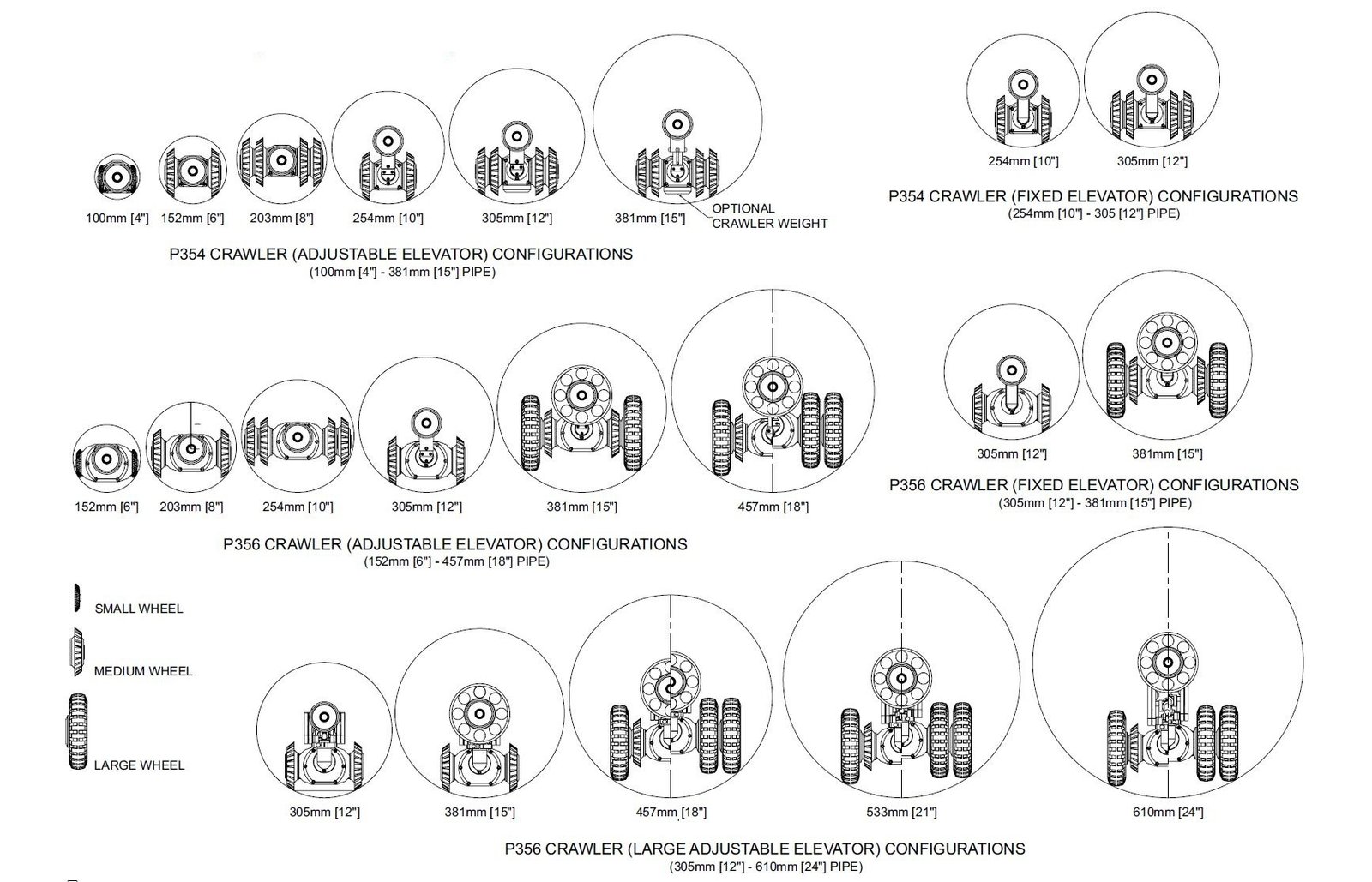

Elevator Configuration Reference
