Sheath and coating fault direction
Provides direction and magnitude of fault information to the connected locator display.
Guides the operator along the route toward the fault position. Trace / sheath fault

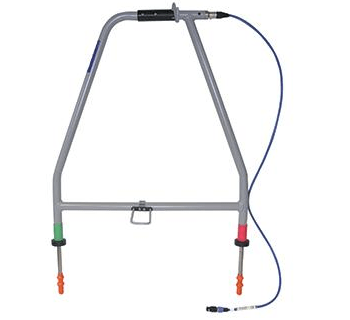

Radiodetection A-Frame
A Radiodetection fault-finding accessory that provides direction and magnitude of fault information on compatible precision locators.
10/RX-AFRAMEStandard part number
Tx-3 / Tx-10Fault Find transmitter required
RD8200+Compatible precision locator range
Best fitSheath fault locating on cables and coating defect locating on pipelines.
Decision guide
Choose A-Frame When...
- The issue is a sheath fault on a cable rather than a conductor fault distance problem.
- The locator operator needs direction and magnitude information on the locator display.
- The team already uses compatible Radiodetection precision locators and a Tx transmitter.
Field benefit01 02 03
What This Product Helps The Crew Do.
Works with precision locators
Radiodetection lists compatibility with RD8200, RD8200G, RD8100, RD7KTL, RD7KPL and RD8KPDL(B) locators.
Extends an existing locator kit into fault-find work.Fault Find signal workflow
Requires a Tx-3(B) or Tx-10(B) transmitter to provide the Fault Find signal.
Keeps the field setup clear: locator, transmitter and A-Frame.Product specs
Key Details.
Use these as the first selection filter. Final configuration depends on cable type, fault condition and site workflow.
| Primary use | Cable sheath faults and pipeline coating defects |
| Part number | 10/RX-AFRAME |

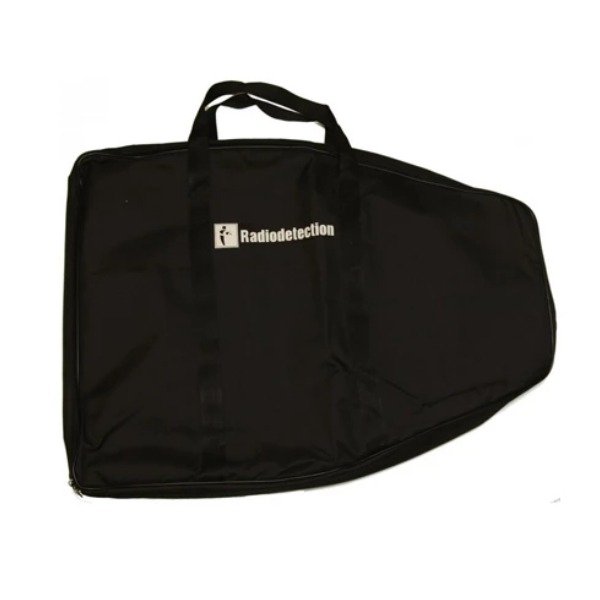

| Bag option | 10/RX-AFRAME-BAG |
| Compatible locators | RD8200, RD8200G, RD8100, RD7KTL, RD7KPL and RD8KPDL(B) |
| Transmitter requirement | Tx-3(B) or Tx-10(B) with Fault Find signal |
Downloads and source material
Reference Documents.
Fault locator kit
Power cable repair teams that need one workflow from fault distance to dig point.
RD97850N pin-pointer
Final surface pinpointing after the fault has been pre-located.
T32 arc reflection kit
High-resistance, flashover and burn-through power cable fault location.
Configure the right kit
Share the cable type, voltage class, fault symptom and route length.
RD-Palmer can recommend whether this product should stand alone or be paired with TDR, surge, pinpointing or A-Frame tools.
